Solafact 5010

Solafact 5010

Solafact 5010

Product Introduction

The instrument features a high-performance DTGS detector, which provides detection sensitivity at the ppm level. It can perform online qualitative and quantitative analysis of hundreds of solid, liquid, and gas samples in complex environments. The instrument also features self-test, self-calibration, path interference diagnosis, and water vapor compensation algorithms.

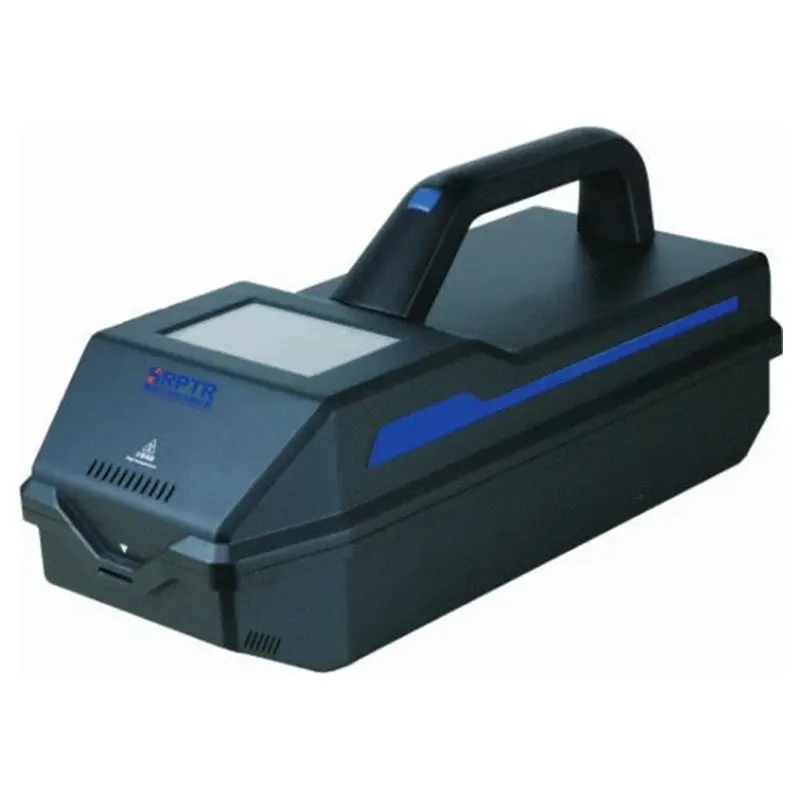

The Solafact 5010 Portable Fourier Infrared Spectrometer is a highly adaptable instrument that can be easily integrated into a wide range of applications. The instrument features a double-angle twisted interference structure, which provides high measurement accuracy, excellent stability, and a long lifespan. Additionally, the instrument boasts a fully integrated and reliable universal sampling function, making it easy to measure and operate. A variety of portable accessories are also available, making it an ideal choice for both laboratory and field testing environments.

Description

Key Features
  • Powerful Detection Capability
  • Compact and Portable Design: The instrument is designed to be compact and portable, requiring only the space of an A4 sheet of paper. It meets the needs of users for portable sampling and measurement. The self-developed compact double-angle twisted Michelson interferometer has high resolution, strong anti-vibration ability, and good stability. The instrument comes with transmission, gas absorption pool, and ATR accessories, which can be used plug-and-play.
  • Rich Product Functions: The instrument is equipped with a multi-functional monitoring terminal, which meets the needs of users for daily environmental monitoring, threat recognition, sound and light alarm, and information storage playback. It has multiple communication interfaces, including Ethernet, 5G, and WiFi, which can work with multiple devices to meet various application scenarios. The instrument has extremely low maintenance costs, no consumables, no external excitation light source, and no secondary pollution.
Technical Indicators
Name Technical Parameters
Detection Type Thousands of chemical substances or warfare agents (expandable according to user needs)
Spectral Range 600 cm-1 ~ 5000 cm-1
Signal-to-Noise Ratio ≥ 20000:1 (1 minute sampling time, spectral resolution 4 cm-1)
Resolution 2 cm-1, optional 1 cm-1 to 8 cm-1
Wavenumber Accuracy ≤ 0.0005 cm-1 @ 2000 cm-1
Transmittance Accuracy Better than 0.1% T
Optical System Fully gold-coated optical system, ZnSe beam splitter
Interferometer Compact double-angle twisted Michelson interferometer
Detector High-sensitivity DLATGS
Detection Method Optional accessories: transmission, ATR, absorption pool
Absorption Pool Optical Path 4.8 m
ATR Accessory ZnSe total reflection prism</
