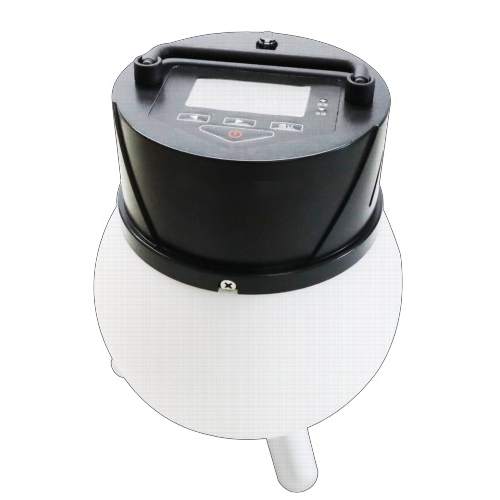

Solafact 130

Solafact 130

Solafact 130

Product Introduction

Solafact 130 neutron measuring instrument is used to measure the dose equivalent around neutrons. The spherical design conforms to the recommendations of the International Commission on Radiation Protection (ICRP). It has good energy response and angular response. It can be used as a portable instrument or as a fixed instrument. meter. The moderator composed of carbon-doped polyethylene and cadmium-doped heavy metal is used together with the He-3 neutron counter tube to optimize the energy response of the detector, and the parameters of the moderator ball are calculated by MCNP simulation. The instrument is mainly used in reactors, nuclear fuel cycle in nuclear technology applications, spent fuel transportation and recovery, nuclear, biological and chemical protection systems and other fields.

Description

Features
  • Wide energy response range with energy compensation
  • MCNP simulation combined with experiments to ensure energy linearity
  • Excellent environmental adaptability and extremely low false alarm rate
  • Portable design, superior to traditional neutron dose rate meter
Technical Indicators
Parameter name Performance parameters
Measurement quality Neutron surrounding dose equivalent rate H*(10)，Sv/h
Energy range Thermal neutrons -20MeV
Measuring range 1uSv/h-1Sv/h（Am-Be）
Sensitivity 0.8cps/uSv/h（Am-Be）
Sensitivity ＜5μSv/h（Cs-137,1Sv/h）
Angular response ≤ ±20%，All-round
Energy response error ≤ ±40%（Am-Be）
Background ≤ 0.1cps
Temperature range -40° C-50° C
Protection level IP54
Power supply Lithium battery, built-in charger
Anti-electromagnetic interference, antishock and vibration Yes
Size Diameter 230mm × Height 280mm
Weight about8kg
Application Field

It can be widely used in reactors, nuclear fuel cycle in nuclear technology applications, spent fuel transportation and recycling, nuclear, biological and chemical protection systems and other fields.
